UnCodeX

UnCodeX is a combination of UClasses and UnDox created by El Muerte.

UnCodeX can create a class and package tree from the UnrealScript sources, analyse the content of each class for later use.

UnCodeX also gives you the ability to create a high detailed HTML API reference from your code. It includes all definitions made in classes, syntax highlighted source code, links to the type declarations, automatic JavaDoc-like documentation from your source code and much more.

You can take a look at the following examples:

Note: UnCodeX should work with the source code of all games based on any of the Unreal Engine Versions.

Currently supported UnrealEngine games:

If UnCodeX doesn't work with the unrealscript of a different game, please email me the unrealscript source of the game so I can fix the parser. And add it to the supported list.

Please report bugs/feature requests: on [the SourceForge project page]

Screen shots

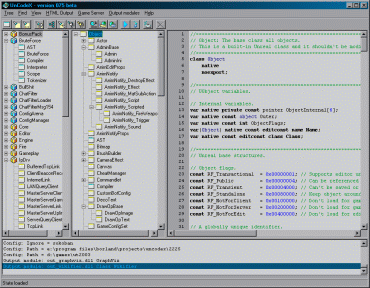

	UnCodeX with everything on

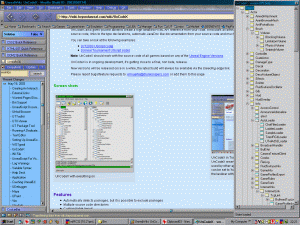

	UnCodeX in Tool window mode. In Tool window mode UnCodeX reserves a part of the desktop that can't be used by other application (like the taskbar). UnCodeX can be set to 'Auto Hide' when it's not focused, just like the taskbar with 'Auto Hide' enabled.

Features

Automatically detects packages, but it is possible to exclude packages
Multiple source code directories
Customizable layout
Customizable hot keys
Application Toolbar support (can snap to the left and right side of the screen)
Compile classes using your favorite compiler front-end
Launch a test server from UnCodeX
Join your test server
Batch execution via commandline
Import package priority settings from game .ini files
possible to tag package to distinguish original packages/classes from custom packages/classes
Commandline version for documentation generation (MS Windows and GNU\Linux i386 builds)
Extendable via RemObjects' PascalScript
Class tree and Package viewer
- Class inheritance tree
- Package tree
- Inline search
- Find a classes in the tree (using part of the name)
- Class full-text search (with regular expression support)
- Syntax hilighted source code preview of a selected class
- Package property editor
- Create subclass dialog
- Recursive delete classes
- Move classes to a different package
- property inspector to list add variables/functions/etc. in a class
- Defaultproperties browser
Documention generator
- Create HTML reference [Example page]
- Compile HTML reference to a MS HTML Help file (requires [HTML Help Workshop])
- Customizable HTML output using templates (UnrealWiki like template included)
- Support for special source code comments: /** comment about the class/var/etc. below */
- All leading class comments are accepted as comments for that class.
- support for custom output modules
- Support for custom comment preprocessors (HTML output)
Additional output modules
- ClassWikifier to be used on the UnrealWiki
- [GraphViz] output ([sample 1], [sample 2])
- [CTAGS] file creator
